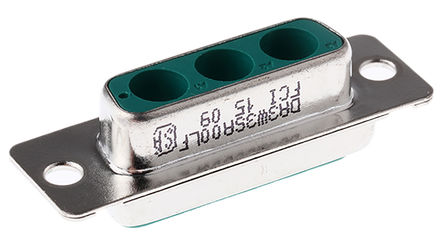

Image is for your reference only,please check specifications for details

DA3W3SA00LF - FCI Electronics
Manufacturer:
FCI Electronics
ManyChip's Part#:
MC25545600
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Datasheet:
Datasheet 3D Model
Description:
AMPHENOL FCI DA3W3SA00LF Combination Layout D Sub Connector, Mixed Power, 681M Series, DA-3W3, Receptacle, 0 Contacts, 3, Solder
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DA3W3SA00LF is a 3-way mixed power combination D-Sub Connector for power contacts. This DW Series D-Sub connector is one of the most popular input to output interconnects, addressing a wide variety of applications. Black glass-filled thermoplastic insulator, copper alloy contact and SPCC steel shell.
5A Operating current
UL94V-0 Flammability rating
-55 to +125°C Operating temperature range

Show

DA3W3SA00LF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Contacts	3 Contact
Gender	Female
Current Rating	5 A
Number of Rows	1 Row
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Contact Resistance	7.30 mΩ
Number of Mating Cycles	500 Cycle
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	38.76 mm
Size-Width	12.55 mm
Size-Height	12.55 mm
Contact Material	Brass
Material	Steel
Insulation Material	Thermoplastic
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
