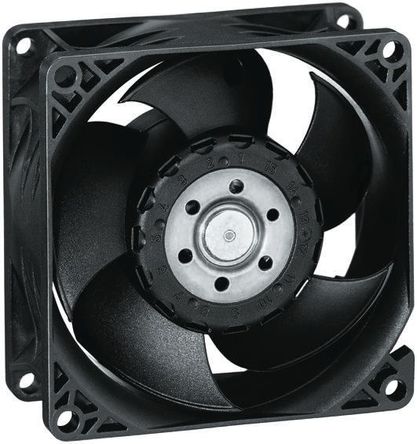

Image is for your reference only,please check specifications for details
- 8214JN - EBM-Papst
-
Manufacturer:EBM-Papst
-
ManyChip's Part#:MC3165721
-
Category:Fan, Blower, Fan Cooler
-
Package:Axial
-
Datasheet:Datasheet 3D Model
-
Description:DC Fan Axial Ball Bearing 24V 18V to 26.4V 78CFM 55dB 80 X 80 X 38mm
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:**
- * New Super High Performance S-Force Fans Added to This Series
- * Electronically Commutated External Rotor Motor
- * Fully Integrated Commutation Electronics
- * Compact Design with High Power Density
- * Electronic Protection Against Reverse Polarity, Blocking and Overloading
- * Innovative Impeller Design with Winglets
- * Fiberglass Reinforced PA Plastic Impeller
- * Fiberglass Reinforced PBT Plastic Housing
- * Air Exhaust Over Struts
- * Clockwise Rotation Looking at Rotor
- * Electrical Connection Via Two 24 AWG Stripped and Tinned Leads
- * UL, CSA, VDE Approvals on Most Models
8214JN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Axial |
| Supply Voltage (DC) | 24.0 V |
| Voltage Rating (DC) | 24.0 V |
| Power Rating | 10 W |
| Input Voltage (DC) | 24.0 V |
| Power Consumption | 10 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 24 V |
| Supply Voltage | 24 V |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 80 mm |
| Size-Height | 38 mm |
| Lead Length | 310 mm |
| Size-Thickness | 38 mm |
| Color | Black |
| Material | Plastic |
| Weight | 160.12 g |
| Operating Temperature | -20℃ ~ 70℃ |
| Housing Material | Thermoplastic |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8414596090 |
| ECCN Code | EAR99 |
