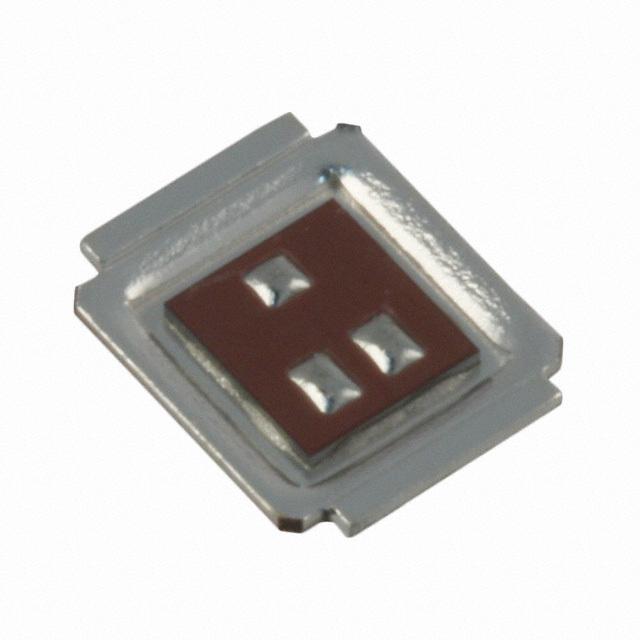

Image is for your reference only,please check specifications for details
Updated at 23/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Single N-Channel 40 V 2.8 W 42 nC Hexfet Power Mosfet Surface Mount - DirectFET
IRF6613TRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | Direct-FET |
| Power Rating | 89 W |
| Number of Positions | 7 Position |
| Drain to Source Resistance (on) (Rds) | 0.0026 Ω |
| Polarity | N-Channel |
| Power Dissipation | 89 W |
| Threshold Voltage | 2.25 V |
| Drain to Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Ids) | 23A |
| Rise Time | 47 ns |
| Input Capacitance (Ciss) | 5950pF @15V(Vds) |
| Input Power (Max) | 2.8 W |
| Fall Time | 4.9 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2.8W (Ta), 89W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
