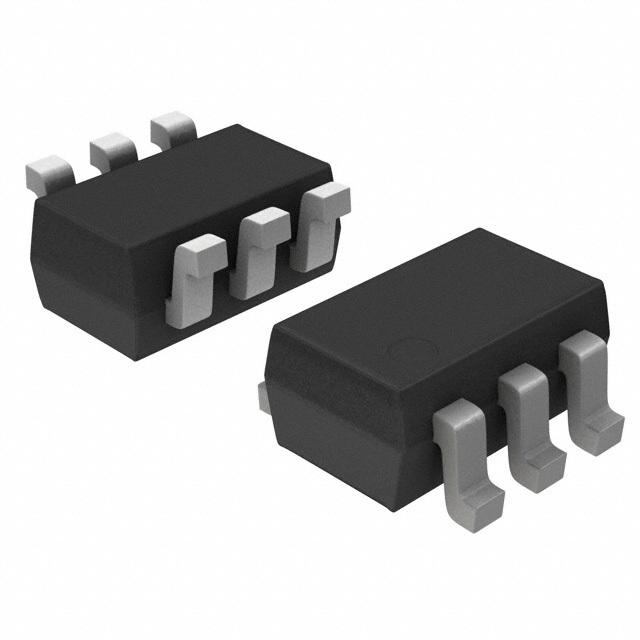

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Bipolar (BJT) Transistor Array NPN, PNP Complementary 40V 200mA 300MHz, 250MHz 150mW Surface Mount SC-88/SC70-6/SOT-363

Show

MBT3946DW1T1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSSOP-6
Voltage Rating (DC)	40.0 V
Current Rating	200 A
Polarity	NPN+PNP
Breakdown Voltage (Drain to Source)	40.0 V
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.2A
hFE Min	100 @10mA, 1V
hFE Max	300
Input Power (Max)	150 mW
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Minimum Packing Quantity	3000
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
HK STC License	NLR
