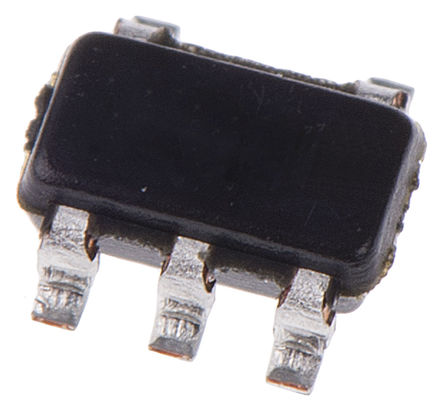

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM8365BALMF27 is a MicroPower under-voltage Sensing Circuit with open-drain output and programmable output delay. It is ideal for use in battery-powered microprocessor based systems, where extended battery life is a key requirement. The LM8365 features a highly accurate voltage reference, a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation, a time delayed output which can be programmed by the system designer and specified reset operation down to 1V with extremely-low standby current.
High accuracy threshold voltage (±2.5%)
Programmable output delay by external capacitor (130ms typical with 0.1µF)
Pin-for-Pin-compatible with MC33465
0.62µA at VIN=2.6V Extremely-low quiescent current
Green product and no Sb/Br

Show

LM8365BALMF27 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23
Supply Voltage (DC)	1.00V (min)
Output Current	1.00 mA
Number of Positions	5 Position
Threshold Voltage	2.7 V
Reset Threshold Voltage (Min)	2.633 V
Reset Threshold Voltage (Max)	2.767 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	1 V
	Show
Size-Length	2.92 mm
Size-Width	1.6 mm
Size-Height	1.02 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
