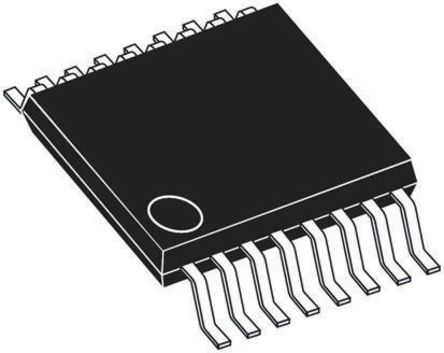

Image is for your reference only,please check specifications for details

DAC1220E - TI
Manufacturer:
TI
ManyChip's Part#:
MC4266440
Category:
Digital to Analog, DAC IC
Package:
SSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC1220E Digital to Analog Converter, 20Bit, 500 SPS, Serial, 4.75V to 5.25V, QSOP, 16Pins
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC1220E is a 20-bit delta-sigma low power Digital-to-analogue Converter offers 20-bit monotonic performance over the specified temperature range. It utilizes delta-sigma technology to achieve inherently linear performance in a small package at very low power. The resolution of the device can be programmed to 20 bits for full-scale, settling to 0.003% within 15ms typical or 16 bits for full-scale, settling to 0.012% within 2ms maximum. The output range is two times the external reference voltage. On-chip calibration circuitry dramatically reduces low offset and gain errors. The DAC1220 features a synchronous serial interface, in single-converter applications, the serial interface can be accomplished with just two wires, allowing low-cost isolation. For multiple converters, a CS signal allows for selection of the appropriate D/A converter.
2.5mW Low power
Voltage output
2ms to 0.012% Settling time
±0.0015% Maximum linearity error
On-chip calibration
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

DAC1220E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP-16
Number of Outputs	1 Output
Supply Current	460 µA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	20 Bit
Power Dissipation	0.0035 W
Sample Rate	500 SPS
Power Consumption	2.50 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3.5 mW
Number of DACs	1 DAC
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
