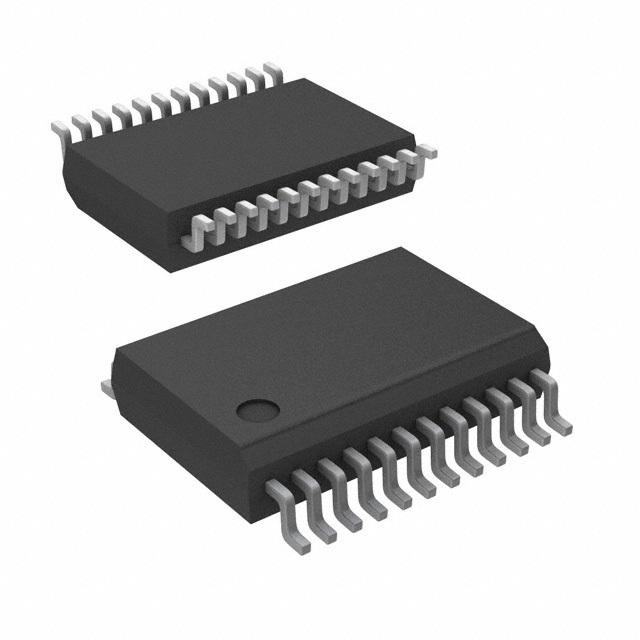

Image is for your reference only,please check specifications for details
- DAC7731EB - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC53816775
-
Category:Digital to Analog, DAC IC
-
Package:SSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:16Bit, Single Channel, Digital-to-Analog Converter W/ Internal +10V eference and Serial I/F 24-SSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:205 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.35
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The DAC7731 is a 16-bit Digital-to-Analog Converter (DAC) which provides 16 bits of monotonic performance over the specified operating temperature range and offers a +10V internal reference. Designed for automatic test equipment and industrial process control applications, the DAC7731 output swing can be configured in a ±10V, ±5V, or +10V range.
- FEATURES
- ● LOW POWER: 150mW MAXIMUM
- ● +10V INTERNAL REFERENCE
- ● UNIPOLAR OR BIPOLAR OPERATION
- ● SETTLING TIME: 5µs to ±0.003% FSR
- ● 16-BIT MONOTONICITY, –40°C TO +85°C
- ● ±10V, ±5V, OR +10V CONFIGURABLE VOLTAGE OUTPUT
- ● RESET TO ZERO OR MID-SCALE
- ● DOUBLE-BUFFERED DATA INPUT
- ● DAISY-CHAIN FEATURE FOR MULTIPLE DAC7731s ON A SINGLE BUS
- ● SMALL SSOP-24 PACKAGE
- APPLICATIONS
- ● PROCESS CONTROL
- ● ATE PIN ELECTRONICS
- ● CLOSED-LOOP SERVO CONTROL
- ● MOTOR CONTROL
- ● DATA ACQUISITION SYSTEMS
DAC7731EB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SSOP-24 |
| Number of Outputs | 1 Output |
| Supply Current | 4.00 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 0.15 W |
| Sample Rate | 172 µHz |
| Power Consumption | 100 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 150 mW |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 5.25V, 15.75V |
| Supply Voltage (Min) | 4.75V, 11.4V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
