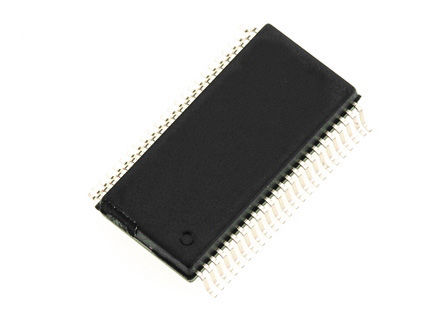

Image is for your reference only,please check specifications for details

DAC7744E - TI
Manufacturer:
TI
ManyChip's Part#:
MC32701542
Category:
Digital to Analog, DAC IC
Package:
SSOP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC7744E Digital to Analog Converter, 16Bit, 100KSPS, Parallel, 4.75V to 5.25V, ± 14.25V to ± 15.75V, SSOP
Stock Locations:
Availability:
1,643 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 61.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC7744E is a 16-bit quad voltage output Digital-to-analog Converter with guaranteed monotonic performance over the specified temperature range. It accepts 16-bit parallel input data, has double-buffered DAC input logic and provides a read-back mode of the internal input registers. Programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zero-scale of 0000H. The DAC7744 operates from either a single 15V supply or from a 15, -15V and 5V supply. Low power and small size per DAC make the DAC7744 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems and closed-loop servo-control.
Low power - 200mW
Settling time - 10µs to 0.03%
Double-buffered data inputs
Green product and no Sb/Br

Show

DAC7744E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	SSOP-48
Supply Voltage (DC)	15.0 V
Number of Outputs	4 Output
Supply Current	6.00 mA
Number of Channels	4 Channel
Number of Positions	48 Position
Number of Bits	16 Bit
Power Dissipation	0.2 W
Sample Rate	100 ksps
Power Consumption	50 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
Number of DACs	4 DAC
Supply Voltage	14.25V ~ 15.75V
Supply Voltage (Max)	5.25V, 15.75V
Supply Voltage (Min)	4.75V, 14.25V
	Show
Size-Length	15.88 mm
Size-Width	7.49 mm
Size-Height	2.59 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
