DAC8420ESZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC562389
Category:
Digital to Analog, DAC IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES DAC8420ESZ Digital to Analog Converter, 12Bit, 125KSPS, Serial, 4.75V to 5.25V, ± 14.25V to ± 15.75V, WSOIC
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 135.16

Updated at 27/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

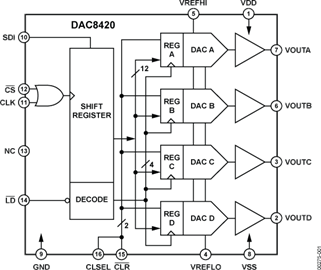

The DAC8420ESZ is a quad 12-bit voltage-output Digital-to-analog Converter (DAC) with serial digital interface. Utilizing BiCMOS technology, this monolithic device features unusually high circuit density and low power consumption. The simple, easy-to-use serial digital input and fully buffered analog voltage outputs require no external components to achieve a specified performance. The 3-wire serial digital input is easily interfaced to microprocessors running at 10MHz with minimal additional circuitry. Each DAC is addressed individually by a 16-bit serial word consisting of a 12-bit data word and an address header. The user-programmable reset control CLR forces all four DAC outputs to either zero scale or midscale, asynchronously overriding the current DAC register values. The output voltage range, determined by the inputs VREFHI and VREFLO, is set by the user for positive or negative unipolar or bipolar signal swings within the supplies, allowing considerable design flexibility.
Guaranteed monotonic over temperature
Excellent matching
Buffered voltage outputs
High speed serial digital interface
Reset-to-zero scale or midscale
Low power consumption

Show

DAC8420ESZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	15.0V (max)
Number of Outputs	4 Output
Supply Current	6 mA
Number of Channels	4 Channel
Number of Positions	16 Position
Number of Bits	12 Bit
Power Dissipation	0.255 W
Sample Rate	125 ksps
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	255 mW
Number of DACs	4 DAC
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
