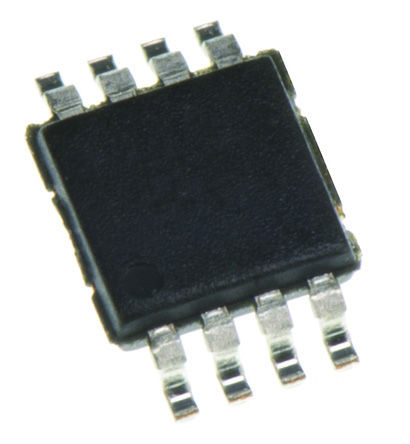

Image is for your reference only,please check specifications for details

DAC8551IADGKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5662390
Category:
Digital to Analog, DAC IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC8551IADGKT Digital to Analog Converter, 16Bit, 1MSPS, Serial, 2.7V to 5.5V, MSOP, 8Pins
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC8551 is a small, low-power, voltage output, 16-bit digital-to-analog converter (DAC). It is monotonic, provides good linearity, and minimizes undesired code-to-code transient voltages. The DAC8551 uses a versatile 3-wire serial interface that operates at clock rates to 30 MHz and is compatible with standard SPI™, QSPI™, Microwire™, and digital signal processor (DSP) interfaces.
The DAC8551 requires an external reference voltage to set its output range. The DAC8551 incorporates a power-on-reset circuit that ensures the DAC output powers up at 0 V and remains there until a valid write takes place to the device. The DAC8551 contains a power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 200 nA at 5 V.
The low-power consumption of this device in normal operation makes it ideally suited for portable, battery-operated equipment. The power consumption is 0.38 mW at 2.7 V, reducing to less than 1 µW in power‑down mode.
For additional flexibilty, see the DAC8550 (SLAS476), a 2s complement-input counterpart to the DAC8551.

Show

DAC8551IADGKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Number of Outputs	1 Output
Supply Current	160 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	16 Bit
Sample Rate	200 ksps
Power Consumption	1 mW
Thermal Shutdown	No
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
