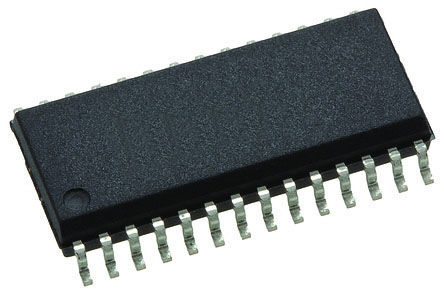

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The DAC908 is a high-speed, Digital-to-Analog Converter (DAC) offering an 8-bit resolution option within the SpeedPlusfamily of high-performance converters. Featuring pin compatibility among family members, the DAC900, DAC902, and DAC904 provide a component selection option to an 10-, 12-, and 14-bit resolution, respectively. All models within this family of DACs support update rates in excess of 165MSPS with excellent dynamic performance, and are especially suited to fulfill the demands of a variety of applications.
- FEATURES
- ●SINGLE +5V OR +3V OPERATION
- ●HIGH SFDR: 5.04MHzOutput at 100MSPS: 67dBc
- ●LOW GLITCH: 3pV-s
- ●LOW POWER: 170mW at +5V
- ●INTERNAL REFERENCE:
- Optional Ext. Reference
- Adjustable Full-Scale Range
- Multiplying Option
- APPLICATIONS
- ●MEDICAL INSTRUMENTATION
- Ultrasound (DBF)
- ●VIDEO, DIGITAL TV
- ●WAVEFORM GENERATION
- Direct Digital Synthesis (DDS)
- Arbitrary Waveform Generation (ARB)
- ●TEST INSTRUMENTATION
- ●COMMUNICATIONS
DAC908U Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Supply Voltage (DC) | 5.00V (max) |
| Number of Outputs | 1 Output |
| Supply Current | 24.0 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 8 Bit |
| Power Dissipation | 0.23 W |
| Sample Rate | 200 Msps |
| Power Consumption | 170 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 230 mW |
| Number of DACs | 1 DAC |
| Show | |
| Size-Length | 18 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
