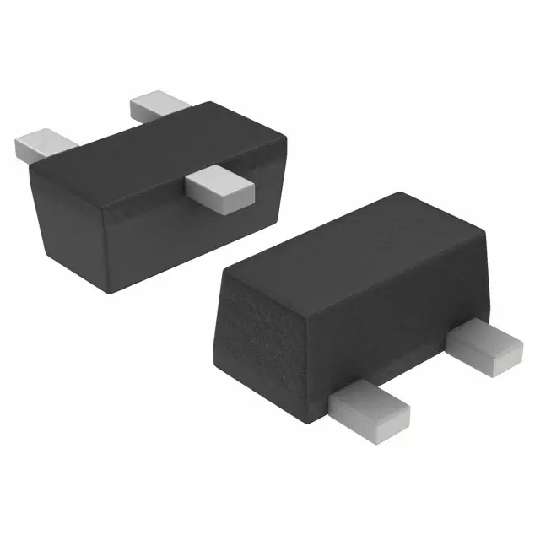

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DAP222WMTL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	EMD-3F-3
Number of Positions	3 Position
Forward Voltage	1.2V @100mA
Reverse recovery time	4 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1.2V @100mA
Forward Current (Max)	0.3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	150 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
