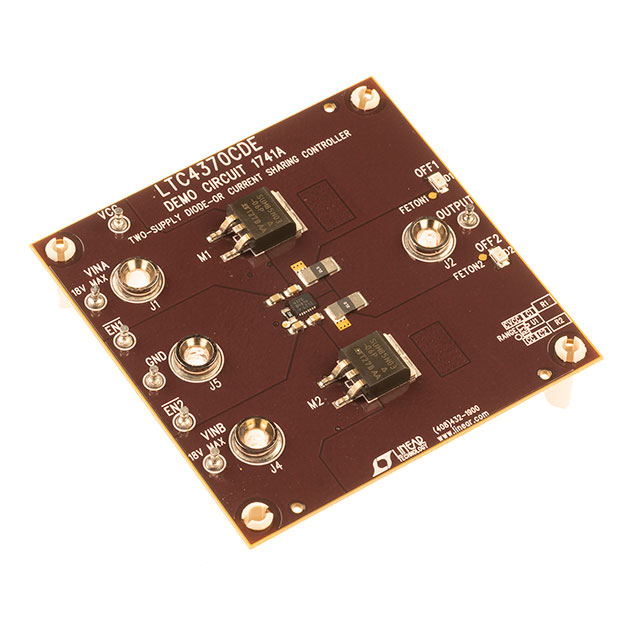

Image is for your reference only,please check specifications for details

DC1741A - Linear Technology
Manufacturer:
Linear Technology
ManyChip's Part#:
MC111801823
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
LINEAR TECHNOLOGY DC1741A Evaluation Board, OR-ing Controller, LTC4370
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 90.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The demonstration circuit DC1741A features the LTC4370, a two supply diode-OR current sharing controller in a typical 2.9V to 18V, 16A sharing application.
Shares load between two supplies
Eliminates need for active control of input supplies
No share bus required
Blocks reverse current
No shoot-through current during start-up or faults
0V to 18V high side operation
Enable inputs
MOSFET On status outputs
Dual ideal diode mode

Show

DC1741A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Outputs	1 Output
Output Current	16600 mA
Input Voltage	2.9VDC ~ 18VDC
	Show
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
