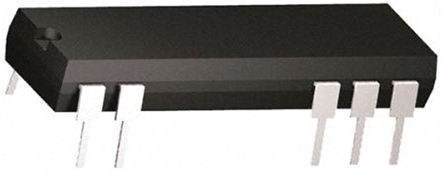

DCR010505P - TI
Manufacturer:
TI
ManyChip's Part#:
MC16027926
Category:
DC to DC Converter
Package:
DIP-18
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DCR010505P Isolated Board Mount DC-DC Converter, 4.5V, 5.5V, 1 Output, DIP, 18Pins
Stock Locations:
Availability:
1,008 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.46

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DCR010505P is a high-efficiency miniature input-isolated output-regulated DC/DC Converter with 1W nominal, galvanically-isolated output power capability and this range of DC/DC offers very low output noise, thermal protection and high accuracy. It also offer 5V input and output voltages.
Device-to-device synchronization
Thermal protection
Short-circuit protected
53W/in³ (3.3W/cm³) Power density
±10% Input range
20MHz Bandwidth, 50% load

Show

DCR010505P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Frequency	800 kHz
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	5.00 V
Output Voltage	5 V
Output Current	200 mA
Number of Positions	18 Position
Quiescent Current	25.0 mA
Number of Regulated Outputs	1 Output
Output Power	1 W
Isolation Voltage	1 kV
Switching Frequency	400 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Output Current (Max)	200 mA
Output Current (Min)	200 mA
Input Power (Max)	1 W
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	0.5 %
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 5.5V
	Show
Size-Length	22.86 mm
Size-Width	6.61 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
