DCR011203U - TI
Manufacturer:
TI
ManyChip's Part#:
MC8597306
Category:
DC to DC Converter
Package:
SOP-28
Datasheet:
Datasheet 3D Model
Description:

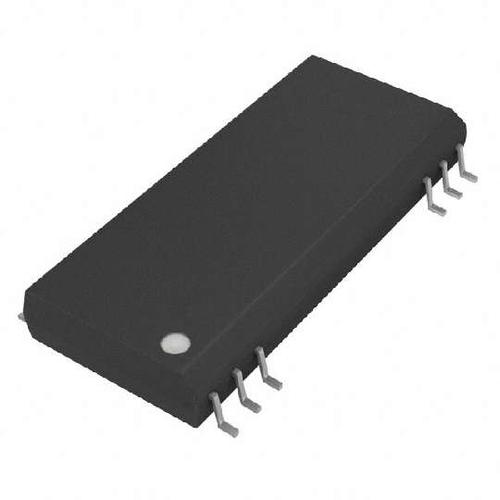

TEXAS INSTRUMENTS DCR011203U Isolated Board Mount DC-DC Converter, Surface Mount DIP, Fixed, SMD, 1W, 3.3V, 300mA
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.86

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DCR011203U is a high-efficiency miniature input-isolated output-regulated DC/DC Converter with 1W nominal, galvanically-isolated output power capability and this range of DC/DC offers very low output noise, thermal protection and high accuracy.
Device-to-device synchronization
Thermal protection
Short-circuit protected
53W/in³ (3.3W/cm³) Power density
±10% Input range
20MHz Bandwidth, 50% load

Show

DCR011203U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	SOP-28
Frequency	800 kHz
Supply Voltage (DC)	12.0 V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	10.8V ~ 13.2V
Output Voltage	3.3 V
Output Current	300 mA
Number of Positions	12 Position
Quiescent Current	13.0 mA
Number of Regulated Outputs	1 Output
Output Power	1 W
Isolation Voltage	1 kV
Switching Frequency	400 kHz
Input Voltage (Max)	13.2 V
Input Voltage (Min)	10.8 V
Input Voltage (DC Max)	12 V
Output Voltage (Max)	3.3 V
Output Current (Max)	300 mA
Input Power (Max)	1 W
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	13.2 V
Input Voltage	10.8V ~ 13.2V
	Show
Size-Length	17.7 mm
Size-Width	7.6 mm
Size-Height	2.65 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
