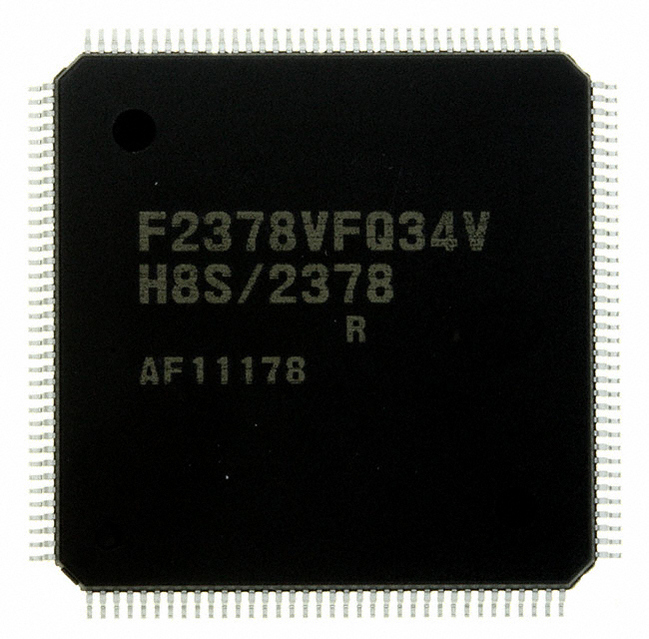

Image is for your reference only,please check specifications for details
- DF2378RVFQ34V - Renesas Electronics
-
Manufacturer:Renesas Electronics
-
ManyChip's Part#:MC75391903
-
Category:Microcontroller, MCU IC
-
Package:LQFP-144
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit/32Bit H8S CISC 512KB Flash 3.3V 144Pin PQFP
-
Stock Locations:
-
Availability:268 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 20.74
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- H8S/2000 H8® H8S/2300 Microcontroller IC 16-Bit 34MHz 512KB (512K x 8) FLASH
DF2378RVFQ34V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | LQFP-144 |
| Frequency | 34 MHz |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Positions | 144 Position |
| Clock Speed | 34.0 MHz, 34.0 MHz (max) |
| RAM Memory Size | 32K x 8 |
| Number of Bits | 16, 32 Bit |
| FLASH Memory Size | 512 KB |
| Number of I/O Pins | 97 IO |
| Access Time | 34.0 µs |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 96 Input IO |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -20℃ ~ 75℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
