Description

The DG444 and DG445 monolithic CMOS analog switches are drop-in replacements for the popular DG211 and DG212 series devices. They include four independent single pole single throw (SPST) analog switches and TTL and CMOS compatible digital inputs.
These switches feature lower analog ON resistance (<85Ω) and faster switch time (tON <250ns) compared to the DG211 and DG212. Charge injection has been reduced, simplifying sample and hold applications.
Features
• ON Resistance (Max). . . . . . . . . . . . . . . . . . . . . . . . . 85Ω
• Low Power Consumption (PD) . . . . . . . . . . . . . . . <35μW
• Fast Switching Action
\- tON (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250ns
\- tOFF (Max, DG444) . . . . . . . . . . . . . . . . . . . . . . . 140ns
• Low Charge Injection
• Upgrade from DG211, DG212
• TTL, CMOS Compatible
• Single or Split Supply Operation
• Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
• Audio Switching
• Battery Operated Systems
• Data Acquisition
• Hi-Rel Systems
• Sample and Hold Circuits
• Communication Systems
• Automatic Test Equipment

Show

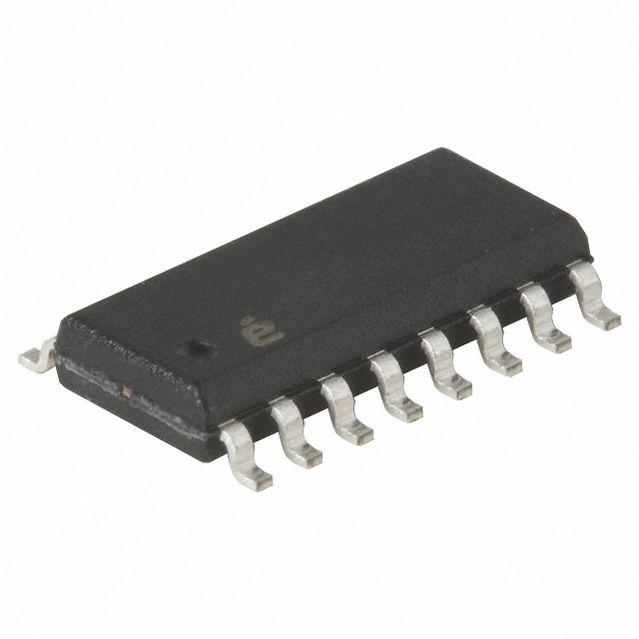

DG444DY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	44.0 V
Contacts Type	SPST
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	50.0 mΩ
Number of Bits	4 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
