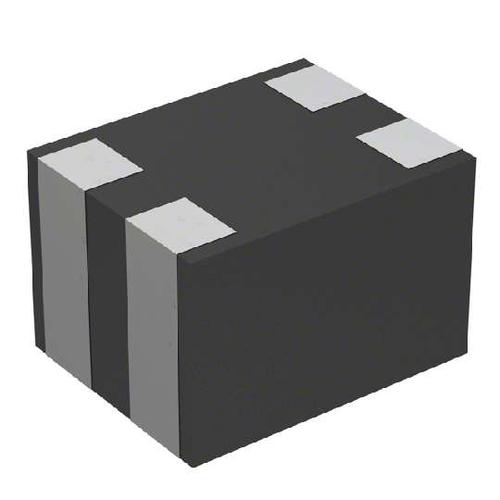

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2 Line Common Mode Choke Surface Mount 28 Ohms @ 100MHz 100mA DCR 1.63Ohm
DLP0NSC280HL2L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 0806 |
| Voltage Rating (DC) | 5 V |
| Current Rating | 100 mA |
| Resistance | 28.0 Ω |
| Impedance | 28.0 Ω |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 100 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 5 VDC |
| Resistance (DC Max) | 1.63 Ω |
| Show | |
| Size-Length | 0.85 mm |
| Size-Width | 0.65 mm |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
