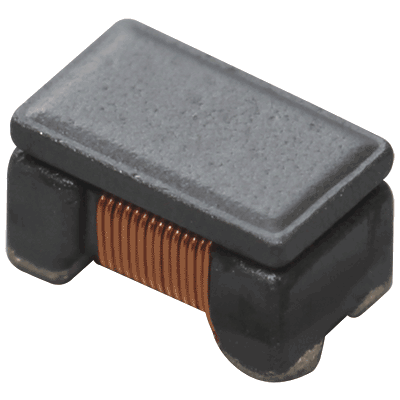

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2 Line Common Mode Choke Surface Mount 920 Ohms @ 100MHz 160mA DCR 950mOhm
DLW21SN921SK2L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Voltage Rating (DC) | 50 V |
| Impedance | 920 Ω |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 160 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 50 VDC |
| Resistance (DC Max) | 0.95 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.2 mm |
| Size-Height | 1.2 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
