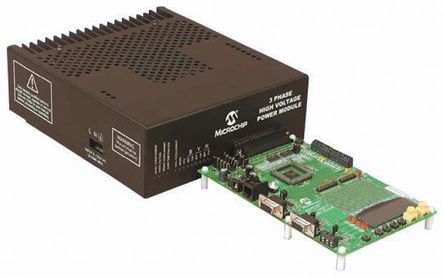

Image is for your reference only,please check specifications for details
- DM300021 - Microchip
-
Manufacturer:Microchip
-
ManyChip's Part#:MC16874523
-
Category:Development Kits
-
Datasheet:Datasheet 3D Model
-
Description:Трехфазный высоковольтный модуль; Подходит для использования с устройством DM300020; мощность – 1 кВт.
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 15/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DM300021 – это трехфазный высоковольтный питательный модуль типа MC1H. Этот модуль оптимизирован для применения в трехфазных двигателях, где требуются напряжения до 400 вольт на постоянном токе и мощность до 1 кВт. В высоковольтном модуле имеется цепь для коррекции коэффициента мощности, управляемая устройством dsPIC30F. Этот питательный модуль предназначен для использования в асинхронных двигателях и инверторных системах, работающих от напряжения электрической линии.
- Модуль управления двигателем на основе чипа dsPIC30F6010.
- Трехфазный низковольтный питательный модуль (по желанию).
- Трехфазный высоковольтный питательный модуль (по желанию).
- Предмет для охлаждения элементов питания.
- Полностью автоматическая защита электрических цепей.
- Электрическое разделение от электрических цепей.
- Множество вариантов для сигналов обратной связи двигателя.
DM300021 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Supply Voltage (DC) | 400 V |
| Output Power | 1 kW |
| Show | |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
