Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

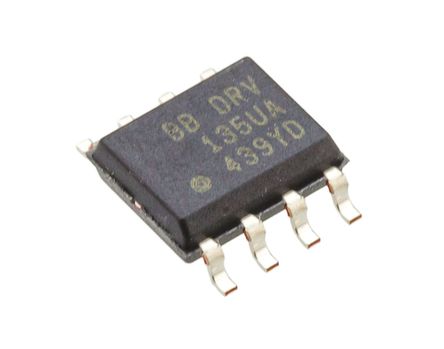

Case/Package | SOIC-8 |
Supply Voltage (DC) | 4.50V (min) |
Operating Voltage | 4.5V ~ 18V |
Supply Current | 5.20 mA |
Number of Channels | 1 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 46 dB |
Quiescent Current | 5.20 mA |
Bandwidth | 1.5 MHz |
Slew Rate | 15.0 V/μs |
Gain | 6 dB |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Minimum CMRR Range | 46 dB |
Supply Voltage (Max) | 18 V |
Supply Voltage (Min) | 4.5 V |
Show | |
Size-Length | 4.9 mm |
Size-Width | 3.91 mm |
Size-Height | 1.58 mm |
Operating Temperature | -55℃ ~ 125℃ (TA) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
