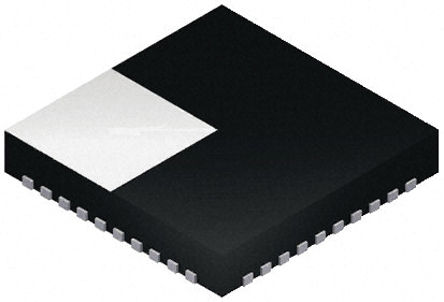

Image is for your reference only,please check specifications for details

DRV8308RHAT - TI
Manufacturer:
TI
ManyChip's Part#:
MC26584123
Category:
Motor Driver
Package:
VQFN-40
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8308RHAT Motor Driver, 3-PhaseASE DC Brushless, 8.5V to 32V supply, 3Outputs, VQFN-40
Stock Locations:
Availability:
211 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 85.46

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8308RHAT is a 3-phase BLDC Motor Pre-driver with integrated speed control and commutation logic. It drives the gates of 6 external N-channel MOSFETs with a configurable current of 10mA to 130mA for optimal switching characteristics. The 3 motor phases are commutated according to the Hall sensor inputs. Once the motor reaches a consistent speed, the DRV8308 uses just 1 Hall sensor to minimize jitter caused by sensor mismatch. The Hall signal-to-drive timing can be advanced or delayed in 0.1% increments to optimize power efficiency. An optional 180° commutation mode drives sinusoidal current through the motor and minimizes audible noise and torque ripple. Peak motor current can be controlled by sizing a sense resistor. The driver achieves closed-loop speed control to spin motors to a precise RPM across a wide range of load torques. The system matches motor speed generated from an FG trace or the Hall sensors to the reference frequency on pin CLKIN.
Integrated commutation from hall sensors
Timing can be advanced/delayed
Single input controls motor speed
Flexible configuration methods
Read internal non-volatile memory
Read external EEPROM
Write SPI
Configurable motor current limiter
Low-power standby mode
Locked rotor detection and restart
Integrated over-current, overvoltage and over-temperature protection
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

DRV8308RHAT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	VQFN-40
Supply Voltage (DC)	8.50V (min)
Number of Outputs	3 Output
Output Voltage	5 V
Output Current	130 mA
Number of Positions	40 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8.5V ~ 32V
Supply Voltage (Max)	32 V
Supply Voltage (Min)	8.5 V
	Show
Size-Length	6.15 mm
Size-Width	6.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
