DRV8313PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC6249900
Category:
Motor Driver
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:

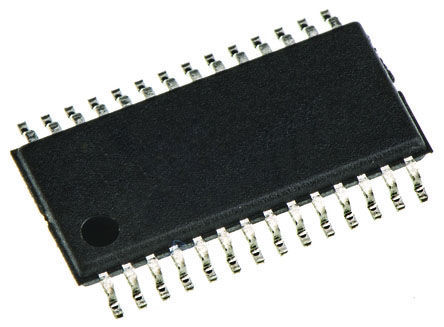

TEXAS INSTRUMENTS DRV8313PWP Motor Driver/Controller, Three Phase DC Brushless, 8V to 60V supply, 2.5A/3Outputs, HTSSOP-28
Stock Locations:
Availability:
28 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8313PWP is a 2.5A 3-phase brushless DC Motor Driver. The device is intended to drive a three-phase brushless DC motor, though it can also be used to drive solenoids or other loads. Each output driver channel consists of N-channel power MOSFETs configured in a half-H-bridge configuration. The design brings the ground terminals of each driver to pins, thus allowing one driver to perform current sensing on each output. Current-limit circuitry or other functions are possible uses of an uncommitted comparator. The DRV8313 can supply up to 2.5A output current per channel (with proper PCB heat sinking at 24V and 25°C) per half-H-bridge. The device provides internal shutdown functions for over-current protection, short-circuit protection, under-voltage lockout and over-temperature.
Individual half-bridge control
Pins for low-side current sensing
Low MOSFET on-resistance
Un-committed comparator can be used for current limit or other functions
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

DRV8313PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Supply Voltage (DC)	8.00V (min)
Number of Outputs	3 Output
Output Current	2.5 A
Number of Positions	28 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 60V
Supply Voltage (Max)	60 V
Supply Voltage (Min)	8 V
	Show
Size-Length	9.8 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
