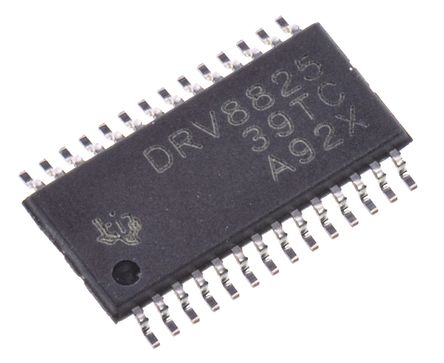

Image is for your reference only,please check specifications for details

DRV8825PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC1064487
Category:
Motor Driver
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8825PWP IC Motor Driver, Stepper, 8.2V to 45V supply, 3.3V/2.5A/4Outputs, HTSSOP-28
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8825PWP is a bipolar stepper motor driver with on-chip 1/32 microstepping indexer in 28 pin HTSSOP package. The device has two H bridge drivers and microstepping indexer. It is intended to drive a bipolar stepper motor. The output driver block consists of N channel power MOSFET"s configured as full H bridges to drive motor windings. A simple STEP/DIR interface allows easy interfacing to controller circuits. Mode pins allow for configuration of motor in full step up to 1/32 step modes. Decay mode is configurable so that slow decay, fast decay or mixed decay can be used. A low power sleep mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. Internal shutdown functions are provided for overcurrent, short circuit, undervoltage lockout and over temperature.
Operating supply voltage range from 8.2V to 45V
Maximum drive current of 2.5A at 24V and TA = 25°C
Built-in 3.3V reference output
Internal current control PWM frequency of 30KHz
Operating temperature range from -40°C to 85°C
This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.

Show

DRV8825PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Supply Voltage (DC)	8.20V (min)
Number of Outputs	4 Output
Output Voltage	3.3 V
Output Current	2.5 A
Number of Channels	2 Channel
Number of Positions	28 Position
Switching Frequency	30 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8.2V ~ 45V
Supply Voltage (Max)	45 V
Supply Voltage (Min)	8.2 V
	Show
Size-Length	9.8 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
