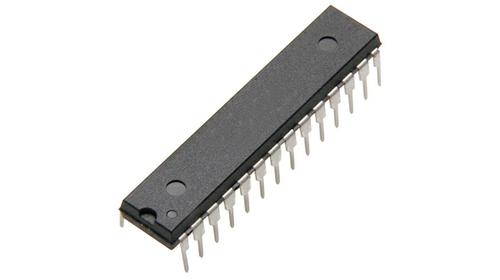

Image is for your reference only,please check specifications for details

DS1216C - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC142773514
Category:
Real Time Clock IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
Real Time Clock Phantom Clock/Parallel 32Kbyte Clock/Calendar/ROM Control 28Pin PDIP W
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 53.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The DS1216 SmartWatch RAM and SmartWatch ROM sockets are 600-mil-wide DIP sockets with a built-in CMOS watch function, an NV RAM controller circuit, and an embedded lithium energy
source. The sockets provide an NV RAM solution for memory sized from 2K x 8 to 512K x 8 with
package sizes from 26 pins to 32 pins. When a socket is mated with a CMOS SRAM, it provides a
complete solution to problems associated with memory volatility and uses a common energy source to maintain time and date.
FEATURES
 Keeps Track of Hundredths of Seconds, Seconds, Minutes, Hours, Days, Date of the Month, Months, and Years
 Converts Standard 2K x 8 Up to 512K x 8 CMOS Static RAMs into Nonvolatile Memory
 Embedded Lithium Energy Cell Maintains Watch Information and Retains RAM Data
 Watch Function is Transparent to RAM Operation
 Automatic Leap Year Compensation Valid Up to 2100
 Lithium Energy Source is Electrically Disconnected to Retain Freshness Until Power is Applied for the First Time
 Proven Gas-Tight Socket Contacts
 Full ±10% Operating Range
 Accuracy Better Than ±1 Minute/Month at +25°C

Show
