DS1859 - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC763822662
Package:
CSBGA-16
Datasheet:
Datasheet 3D Model
Description:
Dual, Temperature-Controlled Resistors with Internally Calibrated MonitorsNew 20kΩ Option for Popular DS1859 SFP Optical Control/Monitor Provides Higher Control Resolution
Stock Locations:
Availability:
74 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description

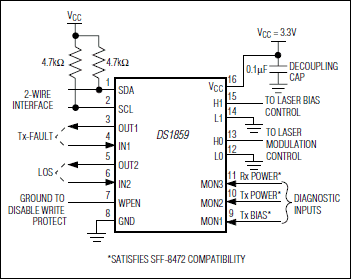

The DS1859 dual, temperature-controlled, nonvolatile (NV) variable resistors with three monitors consists of two 50kΩ or two 20kΩ, 256-position, linear, variable resistors; three analog monitor inputs (MON1, MON2, MON3); and a direct-to-digital temperature sensor. The device provides an ideal method for setting and temperature- compensating bias voltages and currents in control applications using minimal circuitry. The variable resistor settings are stored in EEPROM memory and can be accessed over the 2-wire serial bus.

Show

DS1859 Specifications
