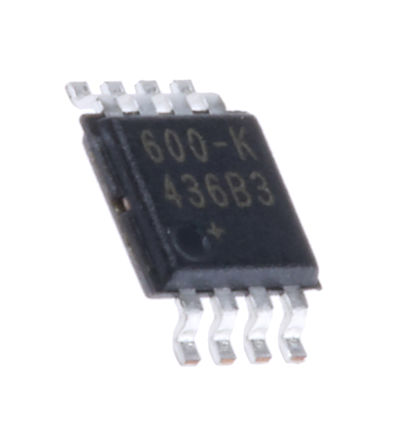

Image is for your reference only,please check specifications for details
- DS600U+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC36859670
-
Category:Temperature Sensor
-
Package:SOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Analog Voltage Output Sensor, 0V Min, 0.4V Max, 0.75Cel, Square, 8Pin, Surface Mount, MO-187, MICRO SOP-8
-
Stock Locations:
-
Availability:943 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.84
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS600U+ is an analogue-output Temperature Sensor. This accuracy is valid over its entire operating voltage range of 2.7 to 5.5V and the wide temperature range of -20 to +100°C. The DS600 can also act as a thermostat, with user-programmable trip points. A shutdown mode enables the DS600 to be placed in a low-power standby state. Suitable for thermally sensitive systems that require a high-accuracy analogue-output temperature sensor.
- Accurate temperature monitoring easily added to any system
- Reacts quickly to temperature shifts
- Shutdown function puts device into a low-power standby mode
DS600U+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOP-8 |
| Supply Voltage (DC) | 2.70V (min) |
| Output Voltage | 0.4 V |
| Supply Current | 140 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.5 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3.05 mm |
| Size-Width | 3.05 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
