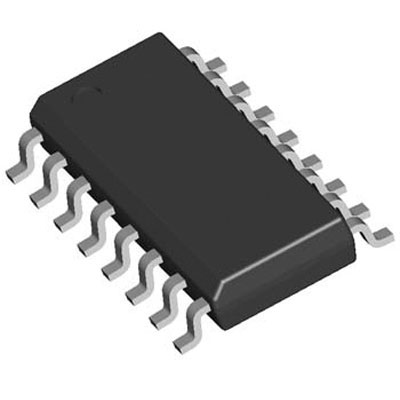

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS90C031TM is a quad CMOS differential Line Driver designed for applications requiring ultra-low power dissipation and high data rates. The device is designed to support data rates in excess of 155.5Mbps (77.7MHz) utilizing low voltage differential signalling (LVDS) technology. It accepts TTL/CMOS input levels and translates them to low voltage (350mV) differential output signals. In addition the driver supports a tri-state function that may be used to disable the output stage, disabling the load current and thus dropping the device to an ultra low idle power state of 11mW typical.
Industrial operating temperature range
Pin-compatible with DS26C31, MB571 (PECL) and 41LG (PECL)
Compatible with IEEE 1596.3 SCI LVDS standard
±350mV Differential signalling
400ps Maximum differential skew (5V, 25°C)
3.5ns Maximum propagation delay

Show

DS90C031TM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	4.50V (min)
Output Voltage	1.60 V
Output Current	10.0 µA
Supply Current	21.0 mA
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	1.068 W
Power Consumption	20.0 W
Input Voltage (Max)	2 V
Input Voltage (Min)	0.8 V
Output Voltage (Max)	450 mV
Input Current (Min)	10 μA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1068 mW
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.91 mm
Size-Width	3.91 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
