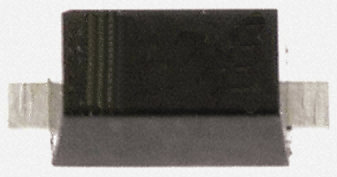

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DZ2W13000L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	Mini2-F3-B
Capacitance Tolerance	±5 %
Number of Positions	2 Position
Forward Voltage	1.2V @200mA
Power Dissipation	1 W
Test Current	10 mA
Zener Voltage	13 V
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Power Dissipation (Max)	1 W
	Show
Size-Length	2.6 mm
Size-Width	1.6 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Temperature Coefficient	10.5 mV/℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
