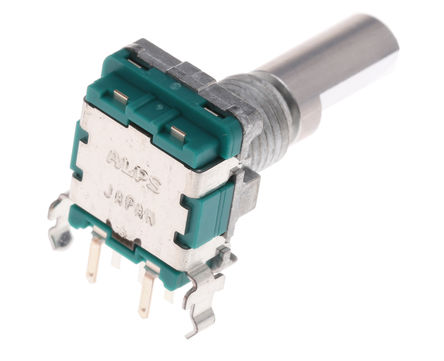

Image is for your reference only,please check specifications for details
- EC11B15242AE - ALPS Electric
-
Manufacturer:ALPS Electric
-
ManyChip's Part#:MC16651200
-
Category:Encoder
-
Datasheet:Datasheet 3D Model
-
Description:ALPS EC11B15242AE Incremental Rotary Encoder, Metal Shaft, With Pushbutton, 11mm, Horizontal, 30 Detents, 15 Pulses
-
Stock Locations:
-
Availability:196 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.57
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EC11B15242AE is a 11mm metal shaft type Horizontal Encoder, 5VDC/10mA rated, flat actuator and 20mm in length, 30 detents, 15 pulses, with push on switch and 0.5mm travel of push-on switch.
- Compact and highly reliable, sliding contact type
- 100MR Insulation resistance
- 15000 Cycles operating life
EC11B15242AE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Supply Voltage (DC) | 5.00V (max) |
| Operating Voltage | 5 VDC |
| Number of Channels | 2 Channel |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5 VDC |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HK STC License | NLR |
