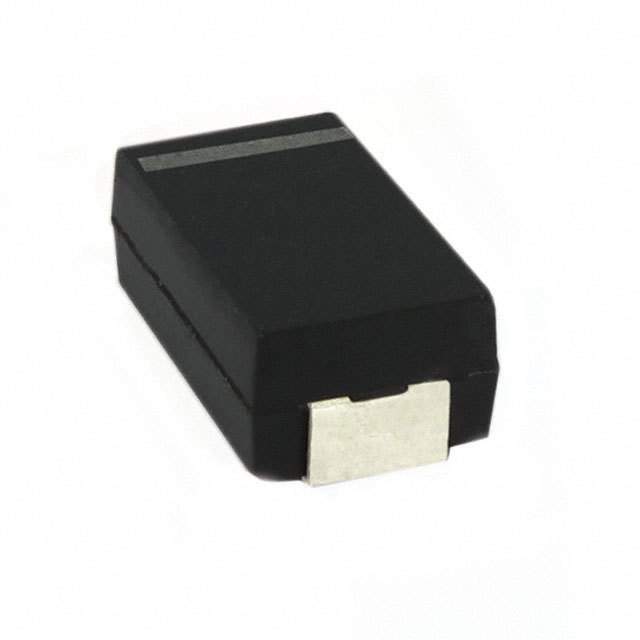

Image is for your reference only,please check specifications for details

ECASD60G227M010K00 - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC96164486
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
2917
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum 220uF 4V 20% (7.3 X 4.3 X 2.8mm) SMD 0.01Ω 3000mA 105℃ Embossed T/R
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Using one of Murata"s ECASD60G227M010K00 conductive polymer aluminum solid capacitors, you can be sure that any excess voltages entering your integrated circuits are properly absorbed. It can withstand a voltage of 4 VDC. It has 2 terminals. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep.

Show

ECASD60G227M010K00 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	7343
Case/Package	2917
Voltage Rating (DC)	4.00 V
Capacitance	220 µF
Equivalent Series Resistance (ESR)	10 mΩ
Capacitance Tolerance	±20 %
Ripple Current	3000 mA
Ripple Current (High Frequency)	3A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	4 V
	Show
Size-Length	7.3 mm
Size-Width	4.3 mm
Size-Height	2.8 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Life (Hours)	1000h @105℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
