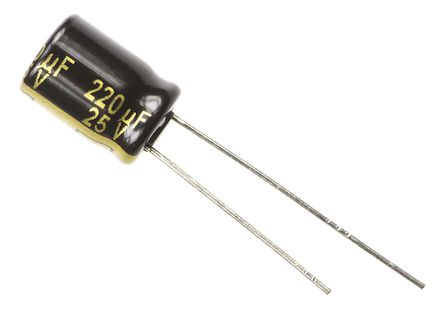

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Panasonic FM series capacitor are type A, radial leaded polarized aluminium electrolytic capacitor. The capacitance value ranges from 22µF to 6800µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
High reliability
Rated voltage range of 6.3VDC to 50VDC
Tolerance of ±20%
Endurance of 2000h to 7000h at 105°C
Operating temperature range -40°C to 105°C

Show

EEUFM1E221 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	3.5 mm
Voltage Rating (DC)	25.0 V
Operating Voltage	25 VDC
Capacitance	220 µF
Capacitance Tolerance	±20 %
Ripple Current	950 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	25 V
	Show
Size-Length	11.5 mm
Size-Height	11.5 mm
Size-Diameter	8.00 mm
Lead Length	17.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	1000
Life (Hours)	3000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
