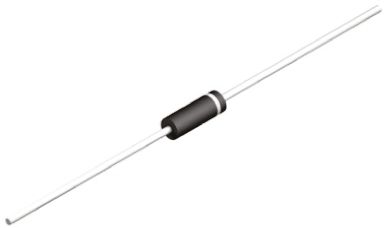

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- ---
- |
- Glass passivated cavity-free junction
- High surge current capability
- Low leakage current
- Superfast recovery time for high efficiency
- Low forward voltage, high current capability
EGP20D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AC |
| Forward Voltage | 950mV @2A |
| Thermal Resistance | 40℃/W (RθJA) |
| Reverse recovery time | 50 ns |
| Forward Current | 2 A |
| Max Forward Surge Current (Ifsm) | 75 A |
| Maximum Forward Voltage (Max) | 950 mV |
| Forward Current (Max) | 2 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Height | 7.6 mm |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| RoHS | |
| Lead-Free Status |
