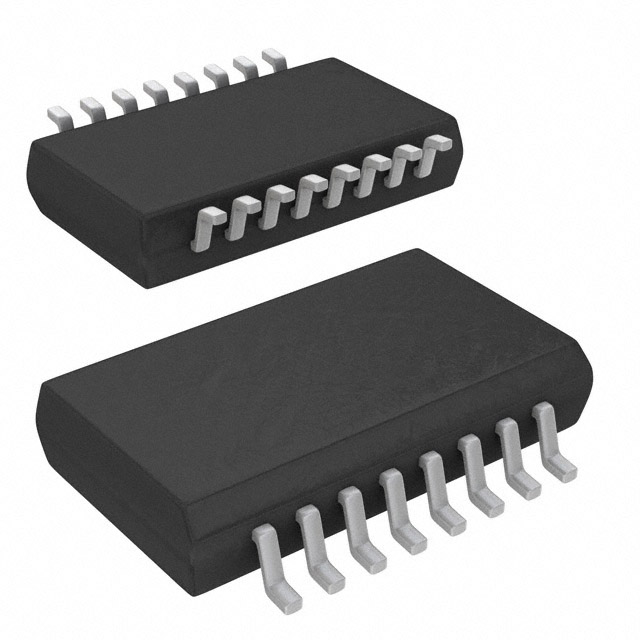

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EL4332 is a triple very high speed 2:1 Multiplexer Amplifier. It is intended primarily for component video
- multiplexing and is especially suited for pixel switching. The amplifiers have their gain set to 2 internally, which reduces the need for many external components. The gain-of-2 facilitates driving back terminated cables. All three amplifiers are switched simultaneously from their A to B inputs by the TTL/CMOS compatible, common A/B control pin.
- Features
- • 3ns A-B switching
- • 300MHz bandwidth
- • Fixed gain of 2, for cable driving
- • > 650V/µs slew rate
- • TTL/CMOS compatible switch
- • Pb-free available
- Applications
- • RGB multiplexing
- • Picture-in-picture
- • Cable driving
- • HDTV processing
- • Switched gain amplifiers
- • ADC input multiplexer
EL4332CSZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Current | 48 mA |
| Number of Circuits | 3 Circuit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 300 MHz |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
