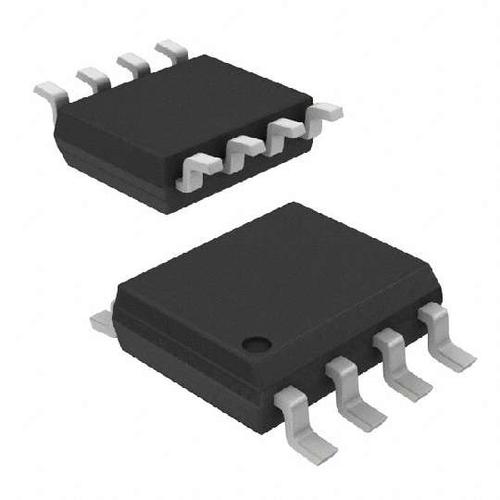

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

EL7155CSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	40 MHz
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	14.5ns, 15ns
Number of Outputs	2 Output
Output Voltage	16.5 V
Output Current	200 mA
Drain to Source Resistance (on) (Rds)	2.00 mΩ
Rise Time	17 ns
Fall Time	17 ns
Fall Time (Max)	17 ns
Fall Time (Max)	17 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 16.5V
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
