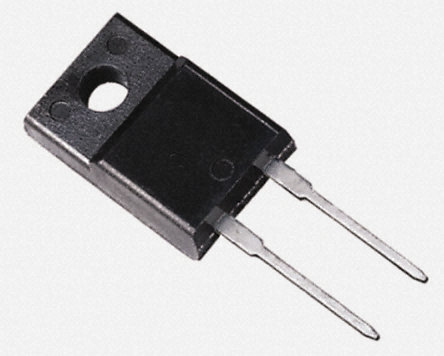

STTH512FP - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC10691200
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH512FP Fast / Ultrafast Power Diode, 1.2kV, 5A, Single, 1.25V, 48ns, 55A
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.71

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH512FP is an Ultra-fast Recovery Diode with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include industrial power supplies and similar mission-critical systems that require rectification and freewheeling. It fits into auxiliary functions such as snubber, bootstrap and demagnetization applications. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Soft recovery
Very low conduction and switching losses
High frequency and/or high pulsed current operation
High reverse voltage capability
High junction temperature

Show

STTH512FP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	1.20 kV
Current Rating	5.00 A
Output Current	≤5.00 A
Forward Voltage	2.2V @5A
Polarity	Standard
Thermal Resistance	5.8 ℃/W
Reverse recovery time	95 ns
Forward Current	5 A
Max Forward Surge Current (Ifsm)	55 A
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
