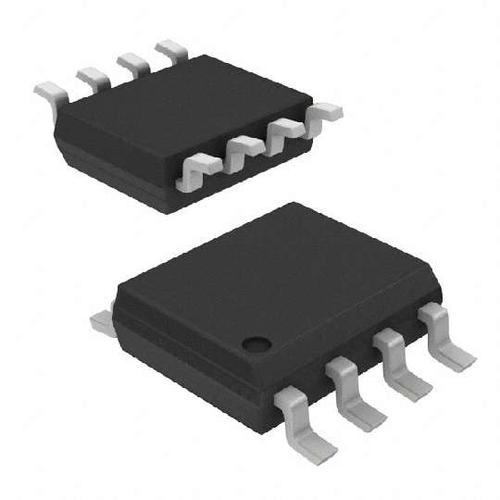

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EL7158ISZ is a high performance Pin Driver IC with three-state is suited to many ATE and level-shifting applications. The 12A peak drive capability makes this part an excellent choice when driving high capacitance loads. The output pin OUT is connected to input pins VH or VL respectively, depending on the status of the IN pin. When the OE pin is active low, the output is placed in the three-state mode. The isolation of the output FETs from the power supplies enables VH and VL to be set independently, enabling level-shifting to be implemented. Related to the EL7155, the EL7158 adds a lower supply pin VS- and makes VL an isolated and independent input. This feature adds applications flexibility and improves switching response due to the increased enhancement of the output FETs. This pin driver has improved performance over existing pin drivers.
Clocking speeds up to 40MHz
12ns tR/tF at 2000pF CLOAD
0.2ns rise and fall times mismatch
0.5ns tON-tOFF prop delay mismatch
3.5pF Typical input capacitance
12A Peak drive
Low ON-resistance of 0.5R
High capacitive drive capability
Operates from 4.5 to 12V
ESD sensitive device, take proper precaution while handling the device.

Show

EL7158ISZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	18.0 V, 4.50 V (min)
Rise/Fall Time	12ns, 12.2ns
Number of Outputs	2 Output
Output Voltage	12 V
Output Current	12 A
Drain to Source Resistance (on) (Rds)	500 µΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
