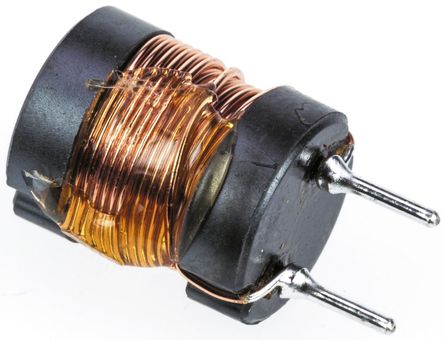

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ELC10D221E is a pin terminal Choke Coil features small size and high performance. Adoption of high-µ and high Bm ferrite cores. This magnetic shield (E type) wide inductor range choke supports 10kHz test frequency and ±10% inductance tolerance.

Show

ELC10D221E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Capacitance Tolerance	±10 %
Inductance	220 µH
Resistance	210 mΩ
Shielding	No
Inductance Tolerance	±10 %
Test Frequency	10 kHz
Resistance (DC Max)	0.21 Ω
	Show
Size-Length	13 mm
Size-Width	10 mm
Size-Height	15 mm
Lead Length	4.00 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
