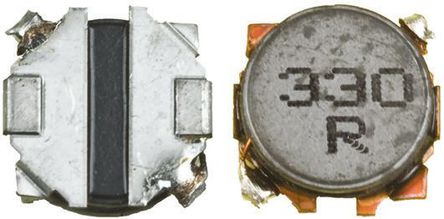

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Height: 1.5 max * Magnetic shielded structure * Low DC resistance and large current capability * Shock resistant * RoHS compliant
ELLVGG4R7N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 2 Pin |
| Case/Package | 1212 |
| Capacitance Tolerance | ±30 % |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 100 kHz |
| Part Family | ELLVGG |
| Resistance | 170 mΩ |
| Resonant Frequency | 100 kHz |
| Inductance Tolerance | ±30 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 170 mΩ |
| Resistance (DC Max) | 0.17 Ω |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 1.5 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
