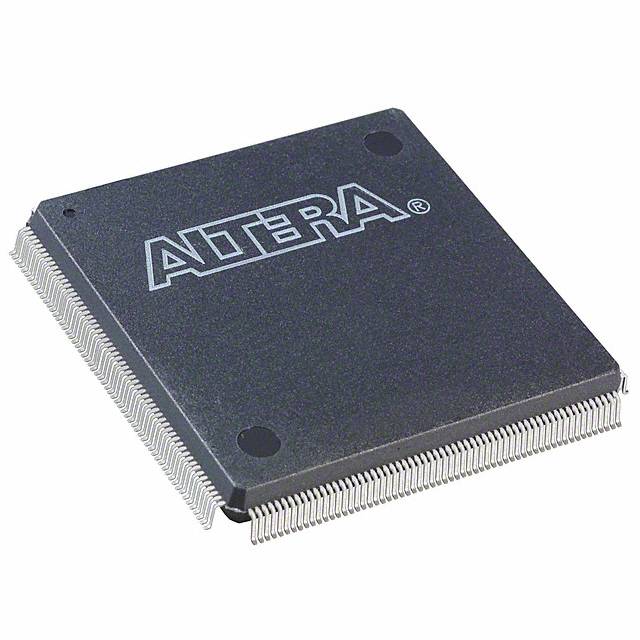

Image is for your reference only,please check specifications for details

EP3C40Q240C8N - Altera
Manufacturer:
Altera
ManyChip's Part#:
MC9033257
Category:
FPGA Chip
Package:
QFP-240
Datasheet:
Datasheet 3D Model
Description:
Field Programmable Gate Array, 39600 CLBs, 472.5MHz, 39600-Cell, CMOS, PQFP240, 34.60 X 34.6MM, 4.1MM HEIGHT, 0.5MM PITCH, PLASTIC, LEAD FREE, QFP-240
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 306.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EP3C40Q240C8N is a Cyclone® III FPGA consists of 39600 vertically arranged logic elements (LEs), 1134kb of embedded memory and 126 18 x 18 embedded multipliers. The architecture includes highly efficient interconnect and low-skew clock networks, providing connectivity between logic structures for clock and data signals. The logic and routing core fabric is surrounded by I/O elements (IOEs) and phase-locked loops (PLLs). The low-power Cyclone® III FPGA family is the third generation in the Altera® Cyclone FPGA series. With its unprecedented combination of low power, high functionality, the Cyclone III FPGA family broadens the number of high-volume, cost-sensitive applications that can benefit from an FPGA. The Cyclone III LS variant extends the family with higher density, higher memory, smaller packages and security features to protect your intellectual property (IP).
4 Phase-locked loops
227 Differential channels
Hot-socketing operation support
Routing architecture optimized for design separation flow with the Quartus® II software
Ability to disable external JTAG port
Error detection (ED) cycle indicator to core
Internal oscillator enables system monitor and health check capabilities
High memory-to-logic and multiplier-to-logic ratio
High I/O count, low-and mid-range density devices for user I/O constrained applications
Remote system upgrade without the aid of an external controller
Dedicated cyclical redundancy code checker circuitry to detect single-event upset (SEU) issues

Show

EP3C40Q240C8N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	240 Pin
Case/Package	QFP-240
Frequency	402 MHz
Number of Positions	240 Position
RAM Memory Size	1161216 b
Number of Inputs and Outputs	128 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	1.15V ~ 1.25V
	Show
Size-Height	3.4 mm
Operating Temperature	0℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	3A991
HK STC License	NLR
