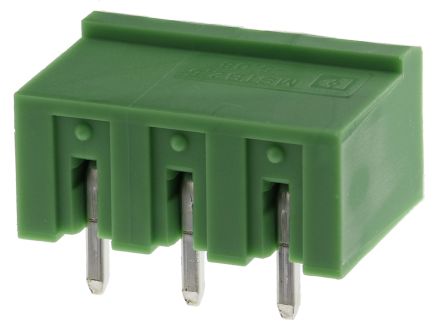

Image is for your reference only,please check specifications for details

1757255 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC1354929
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
Combicon Series Side Panels Plug In Parallel To Pcb 3POS 12A 250VAC Green Plastic Housing 5.08mm Pitch 10.16mm Length
Stock Locations:
Availability:
1,818 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1757255 from Phoenix Contact is a through hole right angle mount, 3 position terminal block header with 5.08mm pitch spacing.
Green colour insulation
Polyamide (PA) insulation material
Tin contact surface
Header dimensions is 12mm x 17.16mm x 12.1mm (L x W x H)
Hole diameter is 1.4mm
Plug-in direction parallel to the conductor axis
UL94 V-0 flammability rating
CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
W type with stand-off

Show

1757255 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	5.08 mm
Number of Contacts	3 Contact
Gender	Male
Contact Plating	Tin
Voltage Rating (DC)	320 V
Voltage Rating (AC)	250 V
Current Rating	12 A
Number of Rows	1 Row
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Mounting Angle	90.0 °
Current Rating (Max)	12 A
Voltage Rating (Max)	320 V
Voltage Rating	250 V
	Show
Size-Length	12 mm
Size-Width	17.16 mm
Size-Height	12 mm
Housing Color	Green
Color	Green
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694040
ECCN Code	EAR99
