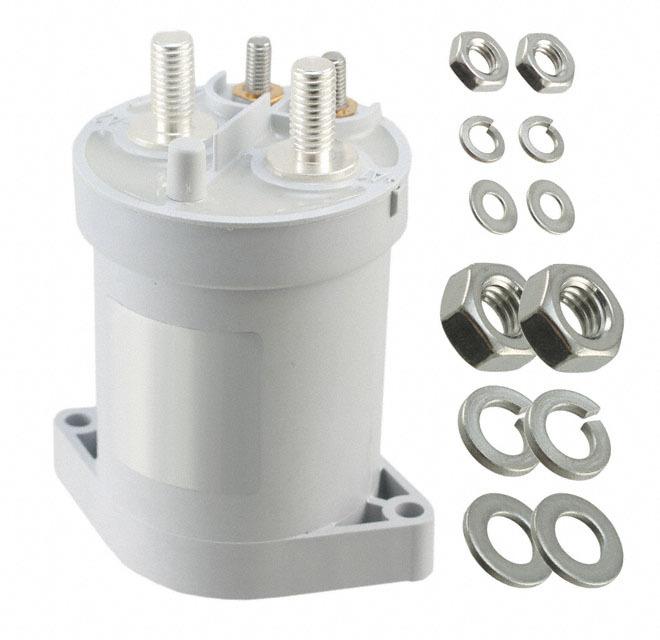

Image is for your reference only,please check specifications for details

LEV200A4NAA - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC13531720
Category:
Power Relay
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 12VDC 11Ω 500A SPST-NO-DM (( 77.72mm 93.98mm)) Flange Contactor Relay
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Electromechanical Relay 12VDC 11Ohm 500A SPST-NO-DM (77.72x93.98)mm Flange Contactor Relay
Product Highlights
Contactor Type = Sealed
LEV200 Series
DC Actuating System
Number of Poles = 1
Contact Arrangement = 1 Form A, SPST-NO

Show

LEV200A4NAA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw Terminals, Flange, Chassis
Number of Pins	4 Pin
Case/Package	-
Operating Voltage	900 VDC
Contacts Type	SPST-NO
Number of Bits	1 Bit
Contact Current Rating	500 A
Coil Voltage	12 VDC
Coil Current	1091 mA
Coil Resistance	11 Ω
Current Rating (Max)	500 A
Coil Voltage (DC)	12 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	77.72 mm
Size-Height	93.98 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536410050
ECCN Code	EAR99
