Description

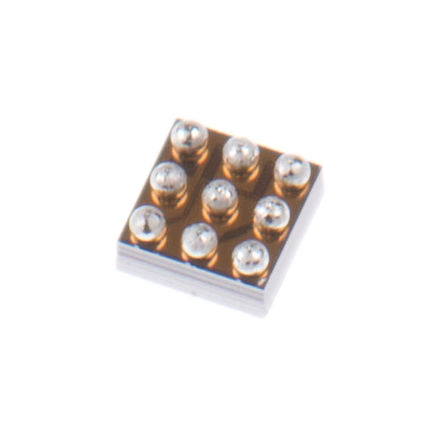

- The ESD5384 chip is a low capacitance ESD protection for HDMI control pins. It also integrates a pull-up resistor for I2C bus, a pull-up resistor for hot plug detect, and a pull-up resistor for CEC line. The ESD protection circuitry prevents damage to the protected device when subjected to ESD surges up to 15kV. The ESD5384 is available in a 9 bump CSP package.
- Features
- ---
- |
- Line capacitance: 12 pF max
ESD5384NCTBG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 9 Pin |
| Case/Package | WLCSP-9 |
| Operating Voltage | 3 V |
| Capacitance | 29 pF |
| Halogen Free Status | Halogen Free |
| Breakdown Voltage | 6 V |
| Min Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Show | |
| Size-Length | 1.14 mm |
| Size-Width | 1.14 mm |
| Size-Height | 0.63 mm |
| Operating Temperature | -30℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
