ET01MD1CBE C&K Components - Toggle Switches

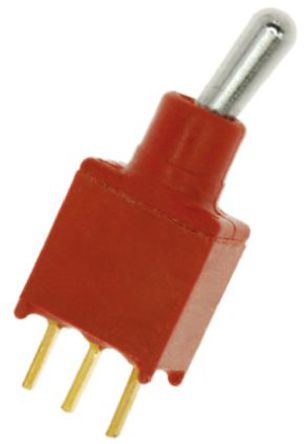

Image is for your reference only,please check specifications for details

ET01MD1CBE - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC1695458
Category:
Toggle Switches
Package:
Through Hole
Datasheet:
Datasheet 3D Model
Description:
Переключатель для включения: Нет, Включено. SPDT-переключатель. Пины для монтажа на плату: 20ВА, 20ВДС, 0.4ВА. Может устанавливаться на плату.
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 16/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Серия ET – миниатюрные переключатели с герметичной конструкцией, используемые для защиты от вредных пылевых осадков, полноценного защитного действия при высоком напряжении и временного погружения. Они герметичны по отношению к загрязнителям, возникающим в процессе пайки и очистки. Используются в условиях высоких температур пайки и методов чистки под давлением.
Компактные размеры и небольшой объем занимаемого пространства на плате.
Доступная защита от электростатического заряда.
Варианты с прорезными контактами и модели для монтажа на поверхность.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Through Hole
Contact Plating	Gold
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Current Rating	0.02 A
Number of Rows	1 Row
Contacts Type	SPDT
Contact Resistance	10.0 mΩ
Contact Current Rating	400mA @20V
Rating Power (Max)	0.4 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 VDC
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
	Show
Size-Length	8.13 mm
Size-Height	19.49 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
