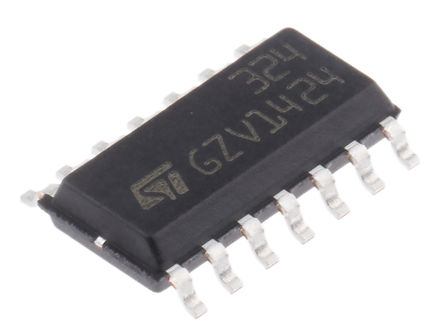

Image is for your reference only,please check specifications for details

LM324DT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC29845
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Quad, 4 Amplifier, 1.3MHz, 0.4V/µs, 3V to 30V, SOIC, 14Pins
Stock Locations:
Availability:
10,038 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM324DT is a quad Operational Amplifier which employs internal frequency compensation, features high gain, low power and low input bias current. It operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Input common-mode voltage range includes ground
100dB Large voltage gain
375µA/amplifier Very low supply current
20nA Low input bias current
5mV Maximum Low input offset voltage
2nA Low input offset current

Show

LM324DT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Operating Voltage	3V ~ 32V
Output Current	70 mA
Supply Current	1.5 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	400 mW
Common Mode Rejection Ratio	80 dB
Bandwidth	1.3 MHz
Slew Rate	400 mV/μs
Gain Bandwidth Product	1.3 MHz
Input Offset Voltage	2 mV
Input Bias Current	20 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1.3 MHz
Power Dissipation (Max)	400 mW
Minimum CMRR Range	70 dB
Supply Voltage	3V ~ 30V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
