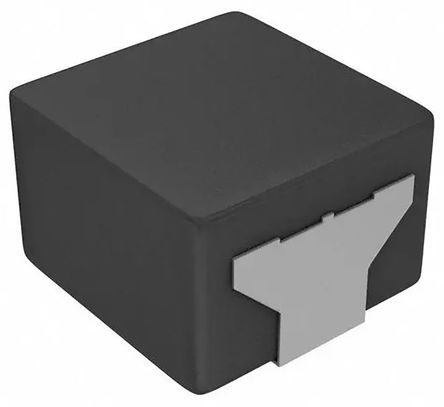

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Panasonic"s ETQP Series Metal Composite Type Power Choke Coils are suited for filter, step-down and step-up circuits for DC/DC converters. They are AEC-Q200 Compliant offering reliability when exposed to high temperatures along with a high resistance to vibration.
- Vibration Resistance of 10G ~ 30G (5Hz - 2kHz)
- Up to 40% Smaller
- Maximum Operating Temperature of 160°C
- Thermal Shock -40 ~+150°C
- Metal Composite Core with Magnetic Shielding
- Non-Hard Saturation
ETQP3M100KVP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | 5.5mm x 5mm x 3mm |
| Capacitance Tolerance | ±20 % |
| Inductance | 10 µH |
| Part Family | PCC-M0530M-LP(MC) |
| Inductance Tolerance | ±20 % |
| Test Frequency | 0.1 MHz |
| DC Resistance (DCR) | 0.1056 Ω |
| Operating Temperature (Max) | 155 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 0.1056 Ω |
| Show | |
| Size-Length | 5.5 mm |
| Size-Height | 3 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
