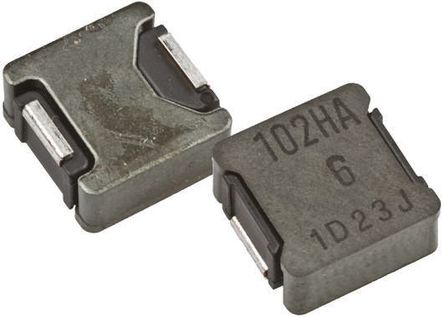

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PCC-F126F series SMD thin profile Power Choke Coil offers compact design with high power. It is suitable for DC-DC converter for driving PCs at high speed and onboard power supply module for DC-DC converters.
- Low leakage flux
ETQP6F4R6HFA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 12.5mm x 12.5mm x 5.7mm |
| Current Rating | 9.3 A |
| Insulation Resistance | 10.0 MΩ |
| Capacitance Tolerance | ±25 % |
| Inductance | 4.6 µH |
| Part Family | ETQP6F |
| Resistance | 6.48 mΩ |
| Shielding | No |
| Inductance Tolerance | ±25 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 6.48 mΩ |
| Resistance (DC Max) | 0.00648 Ω |
| Show | |
| Size-Length | 12.5 mm |
| Size-Width | 12.5 mm |
| Size-Height | 5.7 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
