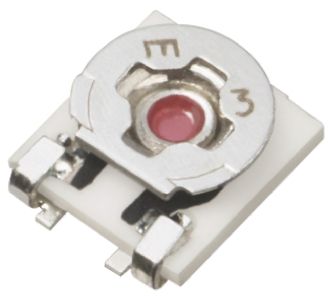

EVM2NSX80B24 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC94610461
Category:
Potentiometer
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS EVM2NSX80B24 Trimmer Potentiometer, 20KΩ, 150mW, ± 25%, 1 Turns, Surface Mount Device
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

●2 mm Square Low-Profi le SMT Trimmer Potentiometers (Cermet, Open Frame Type) ● Low-profi le 0.7 mm (0.75 mm max.) EVM2T 0.81 mm (0.95 mm max.) EVM2N 1.05 mm (1.2 mm max.) EVM2W ● Automatic adjustment type (EVM2W) ● High reliability realized by cermet element ● Ex cellent mountability ● Conforms to JIS C5260-1:1999 ■ Recommended Applications ● Audio/visual, offi ce, and communication equipment ● General electronic equipment

Show

EVM2NSX80B24 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Capacitance Tolerance	±25 %
Power Rating	150 mW
Resistance	20.0 kΩ
Resistance Tolerance	±25 %
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.2 mm
Size-Width	2.20 mm
Size-Height	0.81 mm
Color	Silver
Temperature Coefficient	±250 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
