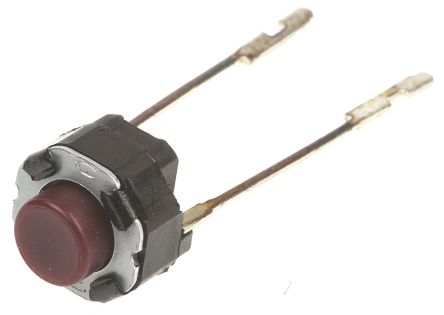

Image is for your reference only,please check specifications for details
- EVQ11U05R - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC136645437
-
Category:Tactile Switch, Jog Switch
-
Datasheet:Datasheet 3D Model
-
Description:Тактильный переключатель нормально разомкнутый SPST с круглой кнопкой, выводы для печатной платы, 0.02А 15В пост. тока, 2.6Н, монтаж в отверстия, T/R
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.08
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
EVQ11U05R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Actuator Type | Standard |
| Orientation | Vertical |
| Contacts Type | SPST-NO |
| Contact Current Rating | 20 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (DC Max) | 15 V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 6 mm |
| Size-Height | 5 mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
