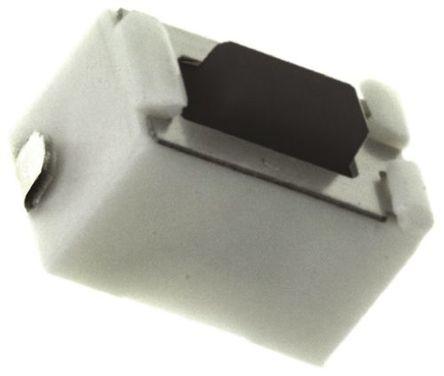

Image is for your reference only,please check specifications for details
- EVQPE105K - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC85158627
-
Category:Tactile Switch, Jog Switch
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 12VDC, 1.5N, Solder Terminal, Surface Mount-straight
-
Stock Locations:
-
Availability:2,036 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.99
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ■ Features
- ● External dimensions : 6.0 mm x 3.5 mm, Height 4.3 mm, 5.0 mm
- ■ Recommended Applications
- ● Operating switches for other electronic equipment
EVQPE105K Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SMD |
| Actuator Type | Standard |
| Current Rating | 50 mA |
| Number of Rows | 1 Row |
| Orientation | Vertical |
| Contacts Type | SPST-NO |
| Contact Current Rating | 50mA @12VDC |
| Current Rating (Max) | 0.05A @12VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 12 VDC |
| Voltage Rating (DC Max) | 12 V |
| Maximum Contact Resistance (Max) | 100 mΩ |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 3.5 mm |
| Size-Height | 5 mm |
| Operating Temperature | -30℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
